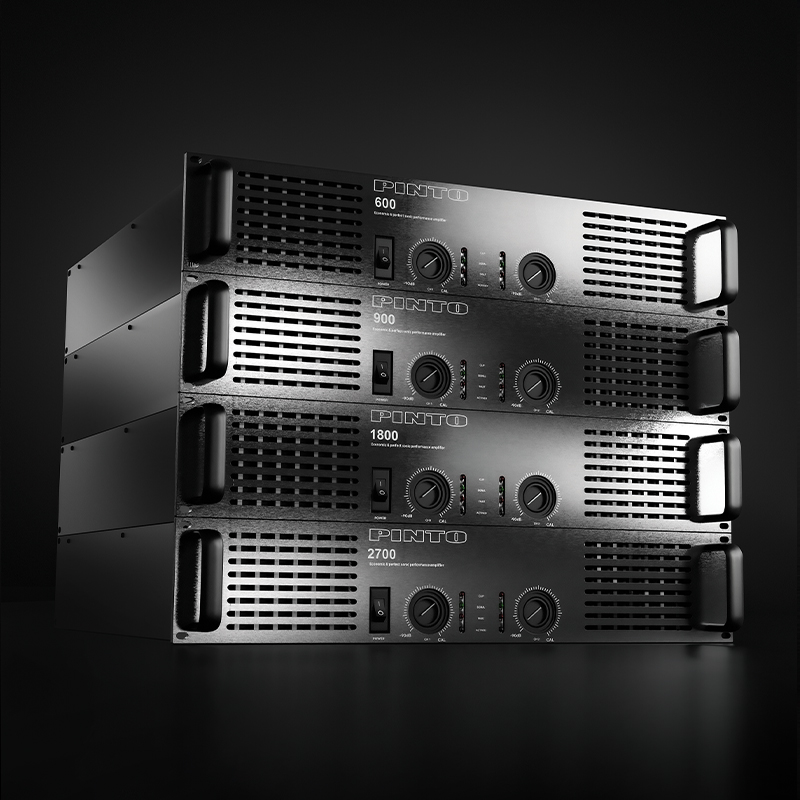

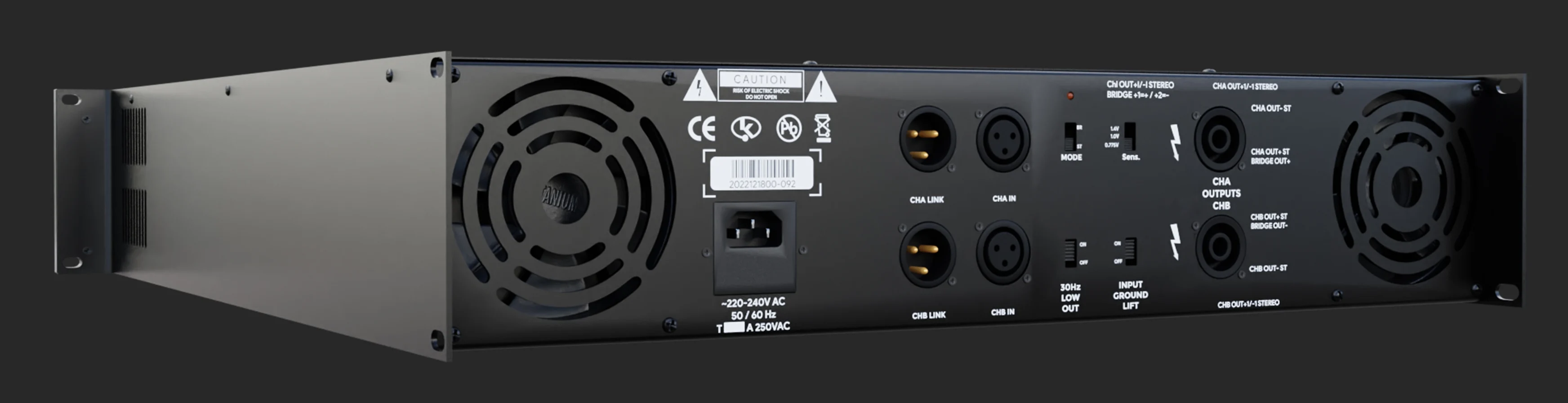

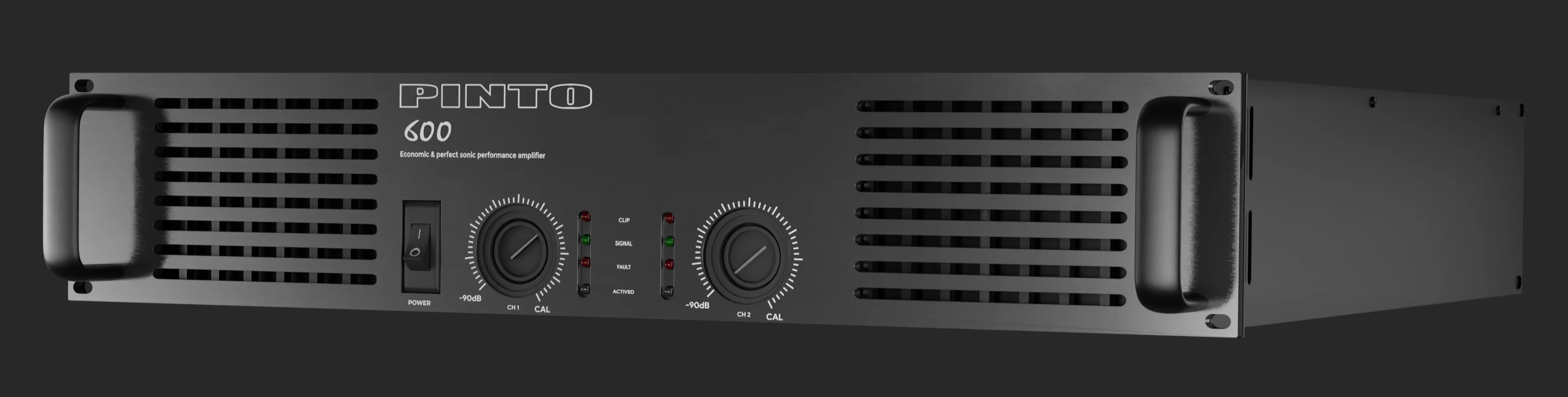

This 2U rack mount amplifier delivers high-fidelity performance, making it perfect for driving line array speakers. Experience unmatched clarity in the mids and highs thanks to its Class AB Design. Built with top-of-the-line materials, this amplifier ensures unwavering stability and efficiency in any environment. The heavy-duty 2U chassis provides the ultimate durability for even the most demanding tours.
| Output | |
|---|---|
8 Ω Stereo Power |
2 x 180W |
4 Ω Stereo Power |
2 x 250W |
2 Ω Stereo Power |
2 x 600W |
4 Ω Bridged mono Power |
600W |
Weight |
24kg |
| Specification | |
|---|---|
Frequency Response |
20Hz-20kHz,(rated power at 40, 1% THD+N) |
Tour Class Protection |
ACL, IGM, Auto Ramp, short circuit, DC voltage turn-on/off transient, Current inrush, Sub Ultrasonic input. |
THD+N (1kHz) |
<0.03% |
Damping Factor (20-400Hz at 8Ω ) |
500:l |
Signal Noise Ration (db} |
> -70dB |
Input Sensitivity (Rated power at 8Ω ) |
.775V standard (switchable) |
Voltage Gain |
X115 standard (switchable) |
Input Impedance |
20 k Ω />10KΩ |
Input Connectors |
FemaleXLR |
Output connecters |
Speakon connectors |
LED Indicators |
Clip/Limit, Signal, Temp/DC, Active |
Power Supply |
240V, 50/60Hz |
Dimension (H x W x D) |
90 x 483 x 380mm |

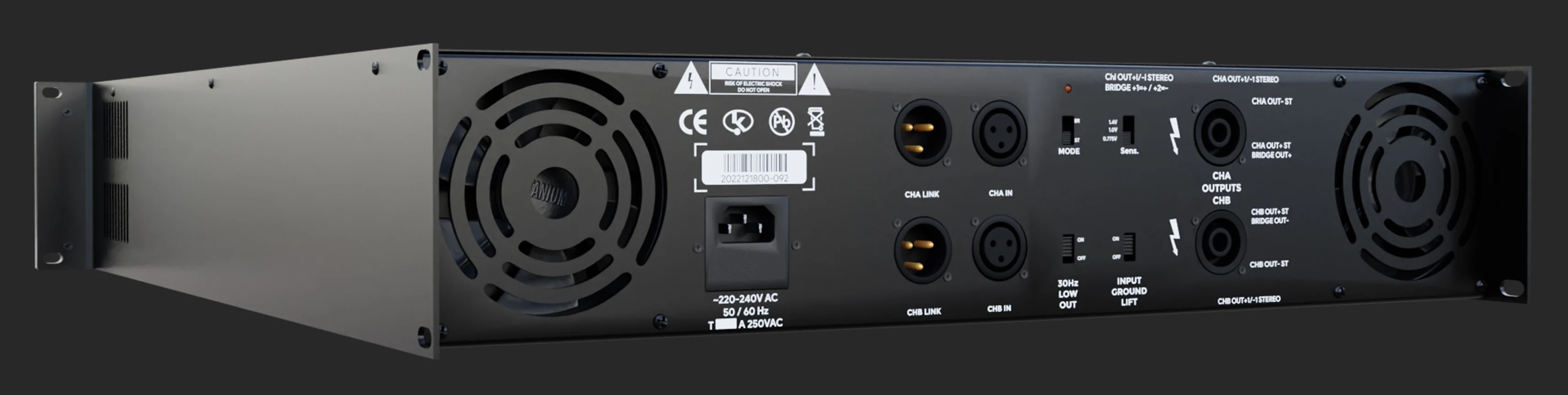

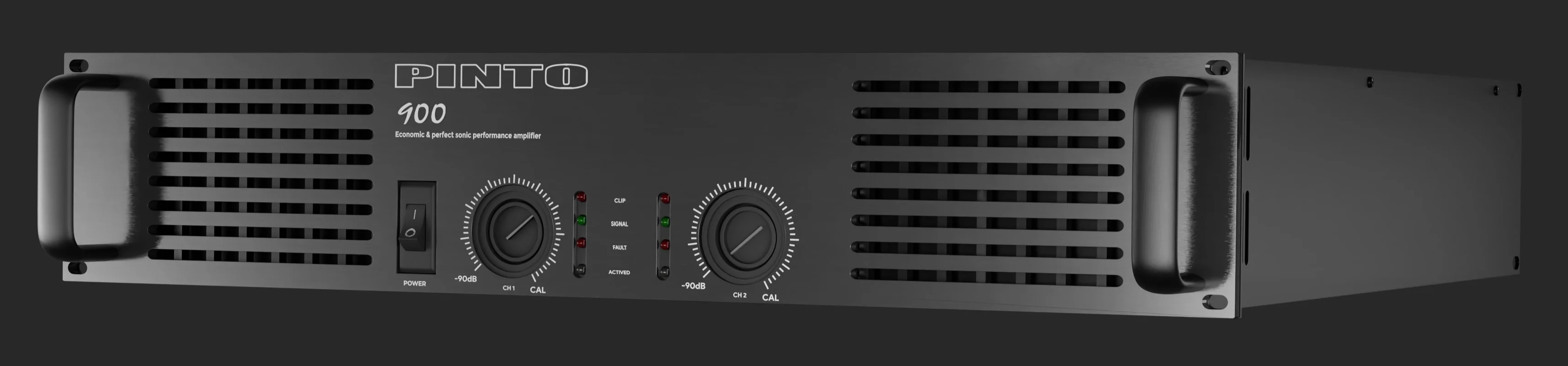

This 2U rack mount amplifier delivers high-fidelity performance, making it perfect for driving line array speakers. Experience unmatched clarity in the mids and highs thanks to its Class AB Design. Built with top-of-the-line materials, this amplifier ensures unwavering stability and efficiency in any environment. The heavy-duty 2U chassis provides the ultimate durability for even the most demanding tours.
| Output | |
|---|---|
8 Ω Stereo Power |
2 x 250W |
4 Ω Stereo Power |
2 x 400W |
2 Ω Stereo Power |
2 x 900W |
4 Ω Bridged mono Power |
600W |
Weight |
26kg |
| Specification | |
|---|---|
Frequency Response |
20Hz-20kHz,(rated power at 40, 1% THD+N) |
Tour Class Protection |
ACL, IGM, Auto Ramp, short circuit, DC voltage turn-on/off transient, Current inrush, Sub Ultrasonic input. |
THD+N (1kHz) |
<0.03% |
Damping Factor (20-400Hz at 8Ω ) |
500:l |
Signal Noise Ration (db} |
> -70dB |
Input Sensitivity (Rated power at 8Ω ) |
.775V standard (switchable) |
Voltage Gain |
X115 standard (switchable) |
Input Impedance |
20 k Ω />10KΩ |
Input Connectors |
FemaleXLR |
Output connecters |
Speakon connectors |
LED Indicators |
Clip/Limit, Signal, Temp/DC, Active |
Power Supply |
240V, 50/60Hz |
Dimension (H x W x D) |
90 x 483 x 380mm |

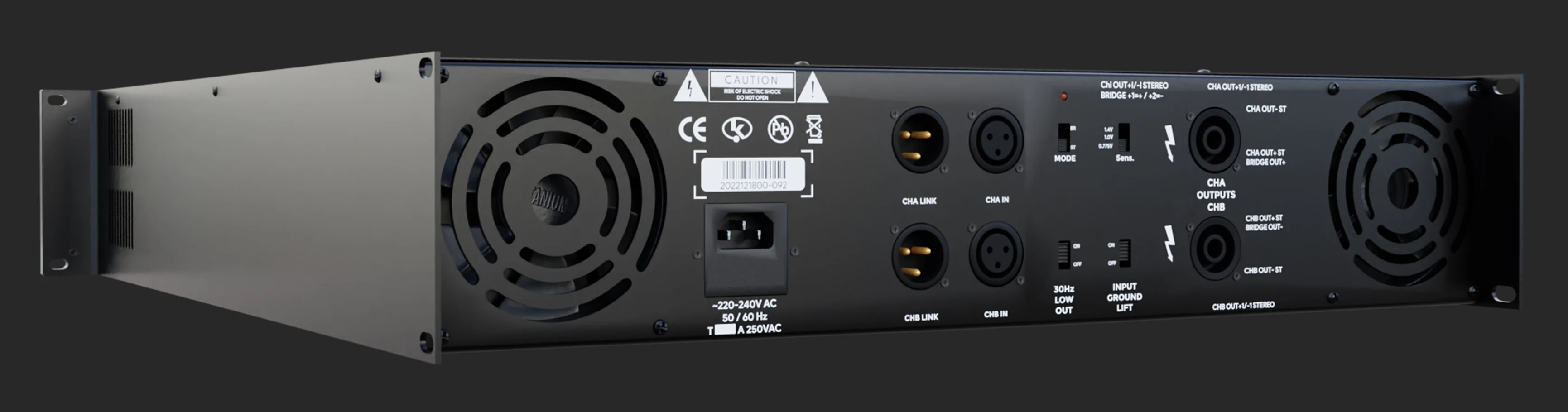

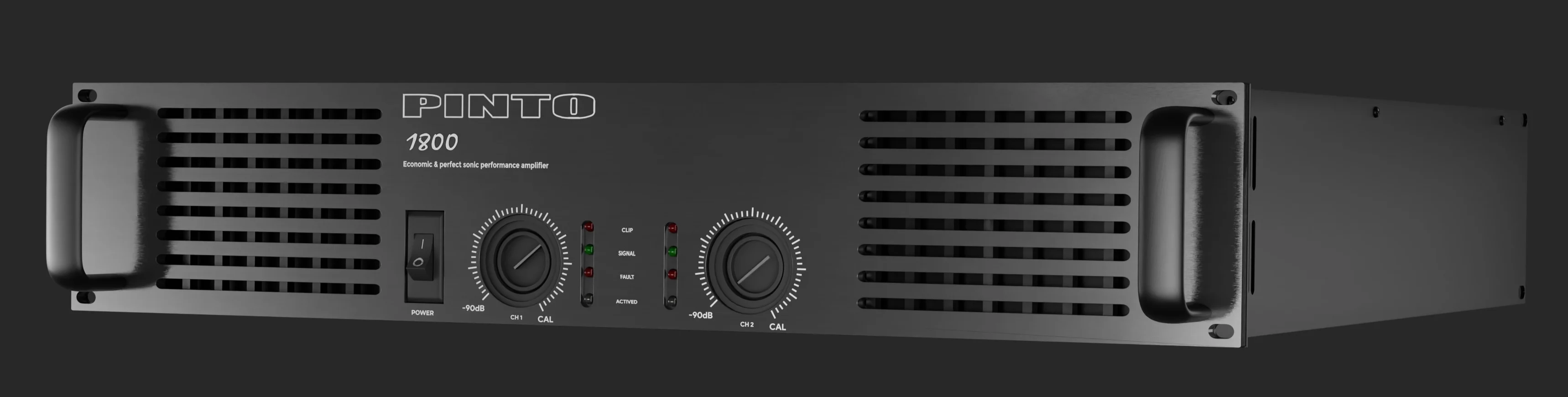

This 2U rack mount amplifier delivers high-fidelity performance, making it perfect for driving line array speakers. Experience unmatched clarity in the mids and highs thanks to its Class AB Design. Built with top-of-the-line materials, this amplifier ensures unwavering stability and efficiency in any environment. The heavy-duty 2U chassis provides the ultimate durability for even the most demanding tours.
| Output | |
|---|---|
8 Ω Stereo Power |
2 x 450W |
4 Ω Stereo Power |
2 x 800W |
2 Ω Stereo Power |
2 x 1500W |
4 Ω Bridged mono Power |
1800W |
Weight |
30kg |
| Specification | |
|---|---|
Frequency Response |
20Hz-20kHz,(rated power at 40, 1% THD+N) |
Tour Class Protection |
ACL, IGM, Auto Ramp, short circuit, DC voltage turn-on/off transient, Current inrush, Sub Ultrasonic input. |
THD+N (1kHz) |
<0.03% |
Damping Factor (20-400Hz at 8Ω ) |
500:l |
Signal Noise Ration (db} |
> -70dB |
Input Sensitivity (Rated power at 8Ω ) |
.775V standard (switchable) |
Voltage Gain |
X115 standard (switchable) |
Input Impedance |
20 k Ω />10KΩ |
Input Connectors |
FemaleXLR |
Output connecters |
Speakon connectors |
LED Indicators |
Clip/Limit, Signal, Temp/DC, Active |
Power Supply |
240V, 50/60Hz |
Dimension (H x W x D) |
90 x 483 x 380mm |

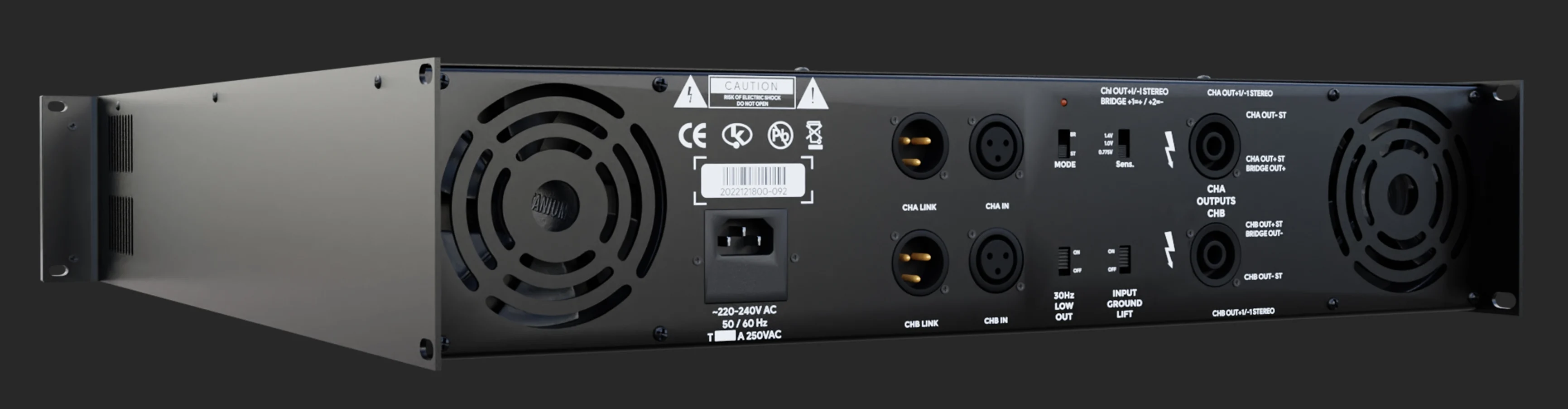

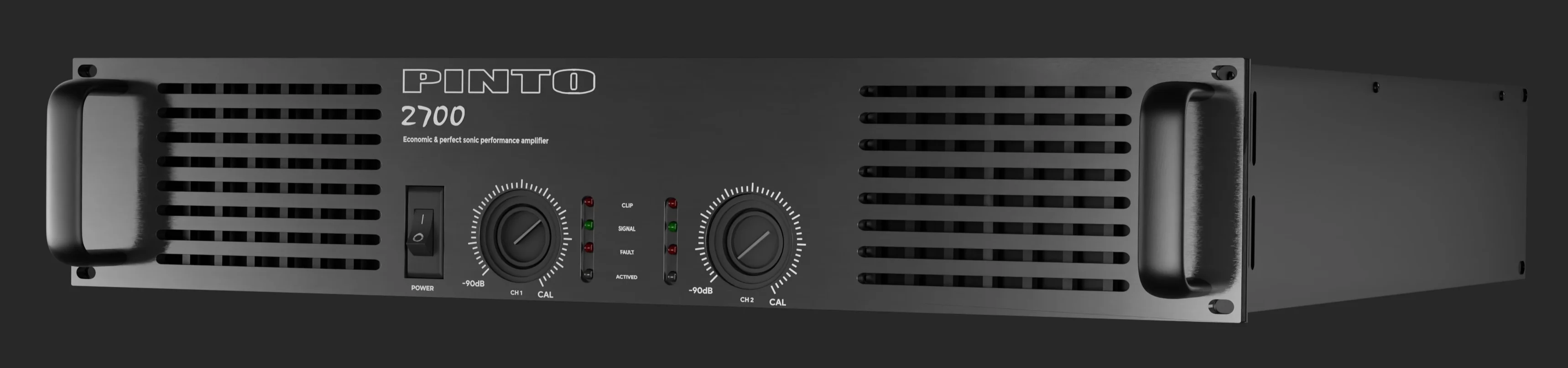

This 2U rack mount amplifier delivers high-fidelity performance, making it perfect for driving line array speakers. Experience unmatched clarity in the mids and highs thanks to its Class AB Design. Built with top-of-the-line materials, this amplifier ensures unwavering stability and efficiency in any environment. The heavy-duty 2U chassis provides the ultimate durability for even the most demanding tours.
| Output | |
|---|---|
8 Ω Stereo Power |
2 x 800W |
4 Ω Stereo Power |
2 x 1200W |
2 Ω Stereo Power |
2 x 2500W |
4 Ω Bridged mono Power |
2700W |
Weight |
36kg |
| Specification | |
|---|---|
Frequency Response |
20Hz-20kHz,(rated power at 40, 1% THD+N) |
Tour Class Protection |
ACL, IGM, Auto Ramp, short circuit, DC voltage turn-on/off transient, Current inrush, Sub Ultrasonic input. |
THD+N (1kHz) |
<0.03% |
Damping Factor (20-400Hz at 8Ω ) |
500:l |
Signal Noise Ration (db} |
> -70dB |
Input Sensitivity (Rated power at 8Ω ) |
.775V standard (switchable) |
Voltage Gain |
X115 standard (switchable) |
Input Impedance |
20 k Ω />10KΩ |
Input Connectors |
FemaleXLR |
Output connecters |
Speakon connectors |
LED Indicators |
Clip/Limit, Signal, Temp/DC, Active |
Power Supply |
240V, 50/60Hz |
Dimension (H x W x D) |
90 x 483 x 380mm |
| Channels | 2 |
|---|---|
| Amplifier Class | AB |
| Power Supply | |
| Power @4Ohm | |
| Size | 2U |
