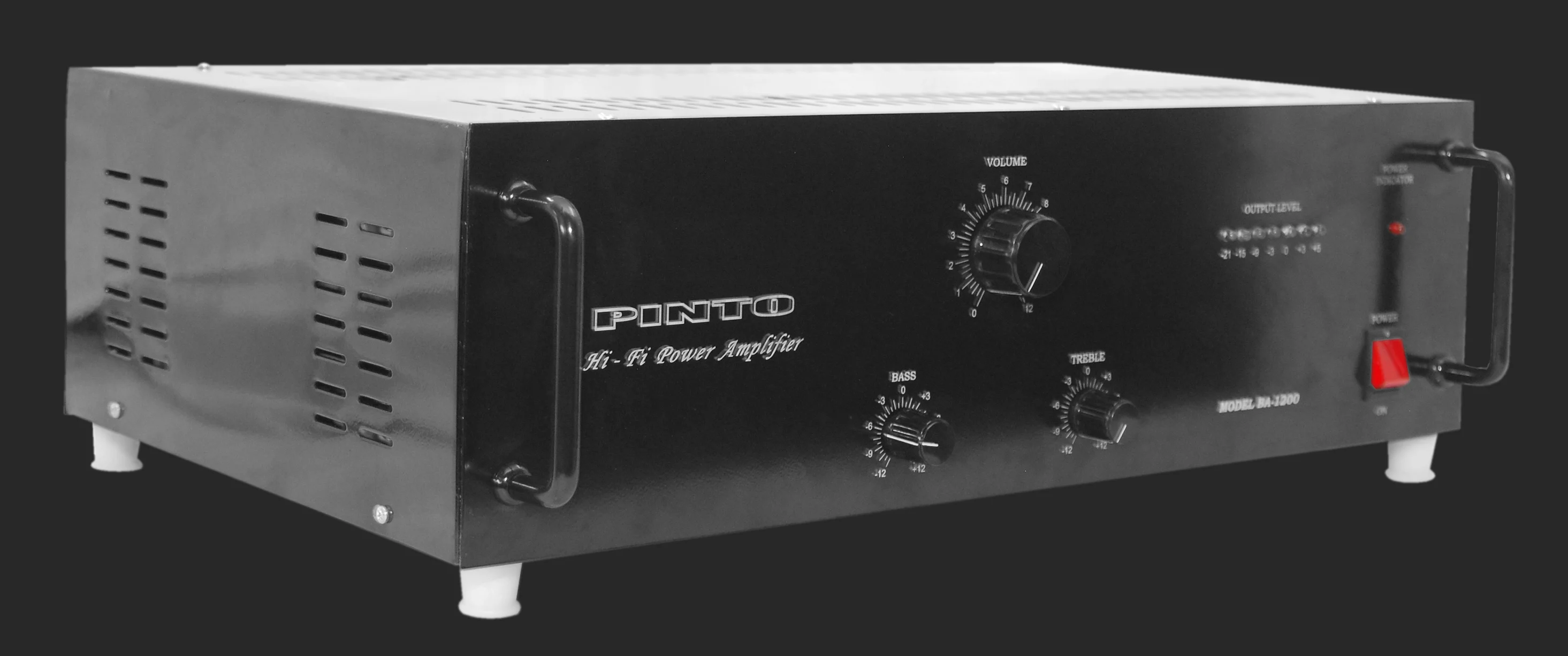

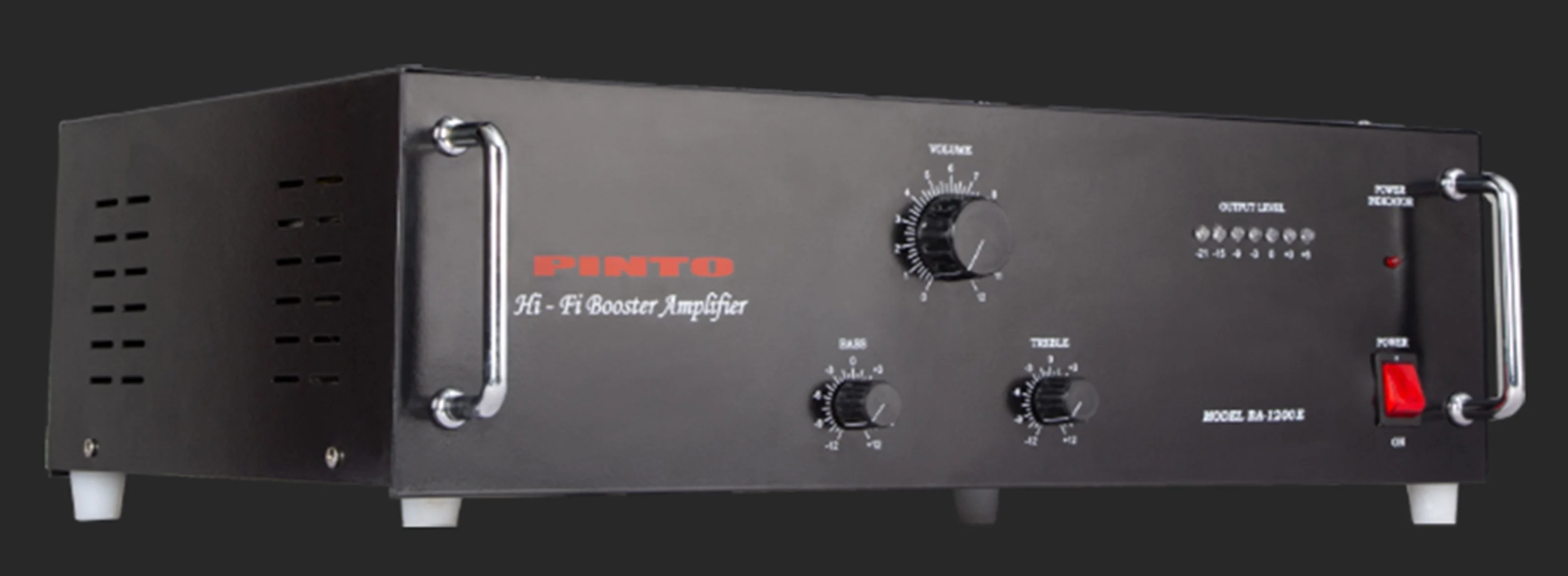

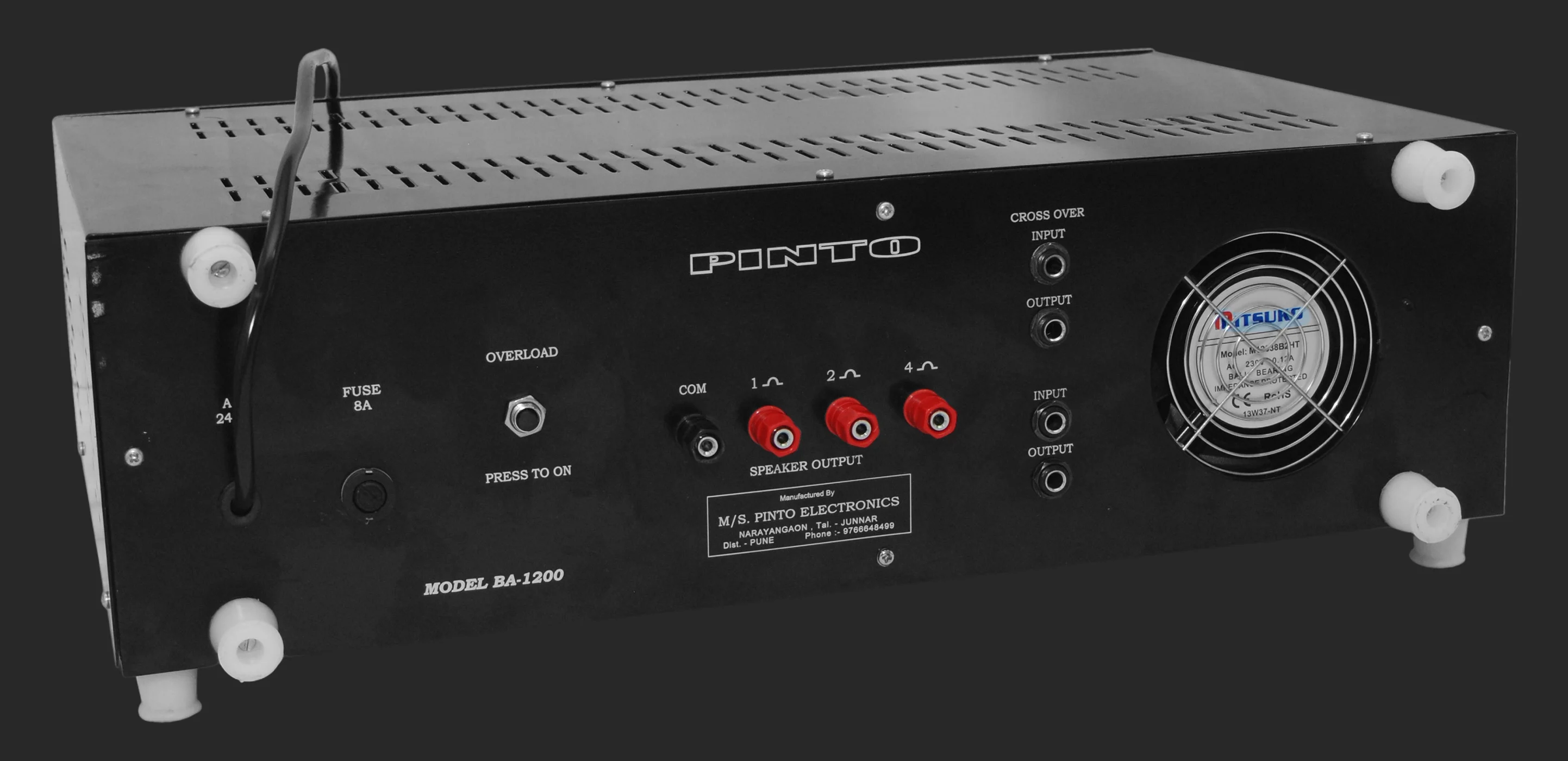

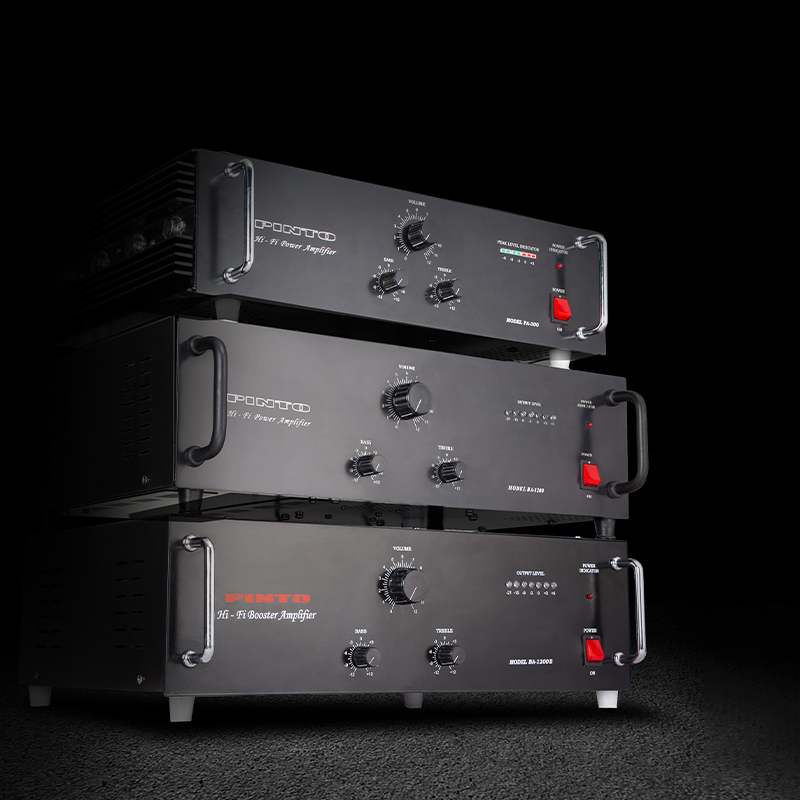

Pinto Hi-Fi power amplifier BA-1200, BA-1200E is a special purpose amplifier design to drive loads up to 1Ω. & also to drive 2 high power woofers up to 1000 watt each at 4Ω. connection. The output circuit is made with high power metal transistor’s fitted on heavy forced air-cooled Al-heat-sink assembly.
BA-300 is designed to drive load up to 4Ω. & 8Ω. also provide common 70-l00V line matching connections to use the amplifier to drive large number of line matching speakers in PA installation system.
The power supply of the amp is of industrial grade components & is design to work stable at voltage range of l80-260V AC, without any switching. An overload protection is used to protect the amplifier from incorrect load matching at the output terminals.
| Output | |
|---|---|
Power Output |
350W Max 5% THO |
Input Channels |
Line Input 250mV/47K |
Frequency Response |
45-16000Hz |
Signal to Noise Ratio |
60dB |
Tone Controls |
Bass/Treble +10dB |
Speaker Outputs |
4Ω, 8Ω 70-l00V Line |
Power Consumption |
500VA/240V/DC 24V |
Dimensions (W x H x D) |
550 x 140 x 350 mm |
Weight |
19kg |
Pinto Hi-Fi power amplifier BA-1200, BA-1200E is a special purpose amplifier design to drive loads up to 1Ω. & also to drive 2 high power woofers up to 1000 watt each at 4Ω. connection. The output circuit is made with high power metal transistor’s fitted on heavy forced air-cooled Al-heat-sink assembly.
BA-300 is designed to drive load up to 4Ω. & 8Ω. also provide common 70-l00V line matching connections to use the amplifier to drive large number of line matching speakers in PA installation system.
The power supply of the amp is of industrial grade components & is design to work stable at voltage range of l80-260V AC, without any switching. An overload protection is used to protect the amplifier from incorrect load matching at the output terminals.
| Output | |
|---|---|
Power Output |
2400W Max 5% TH D |
Input Channels |
1-CH 250mV/47K |
Frequency Response |
36-18000Hz ±3dB |
Signal to Noise Ratio |
60dB |
Tone Controls |
Bass/Treble ±10dB |
Speaker Outputs |
1Ω, 2Ω, 4Ω |
Power Consumption |
2000VA (AC 240 V/50Hz) |
Dimensions (W x H x D) |
558 x 158 x 400 mm |
Weight |
36kg |
Pinto Hi-Fi power amplifier BA-1200, BA-1200E is a special purpose amplifier design to drive loads up to 1Ω. & also to drive 2 high power woofers up to 1000 watt each at 4Ω. connection. The output circuit is made with high power metal transistor’s fitted on heavy forced air-cooled Al-heat-sink assembly.
BA-300 is designed to drive load up to 4Ω. & 8Ω. also provide common 70-l00V line matching connections to use the amplifier to drive large number of line matching speakers in PA installation system.
The power supply of the amp is of industrial grade components & is design to work stable at voltage range of l80-260V AC, without any switching. An overload protection is used to protect the amplifier from incorrect load matching at the output terminals.
| Output | |
|---|---|
Power Output |
2400W Max 5% TH D |
Input Channels |
1-CH 250mV/47K |
Frequency Response |
36-18000Hz ±3dB |
Signal to Noise Ratio |
60dB |
Tone Controls |
Bass/Treble ±10dB |
Speaker Outputs |
7Ω, 2Ω, 4Ω |
Power Consumption |
2000VA (AC 240 V/50Hz) |
Dimensions (W x H x D) |
558 x 158 x 400 mm |
Weight |
36kg |
